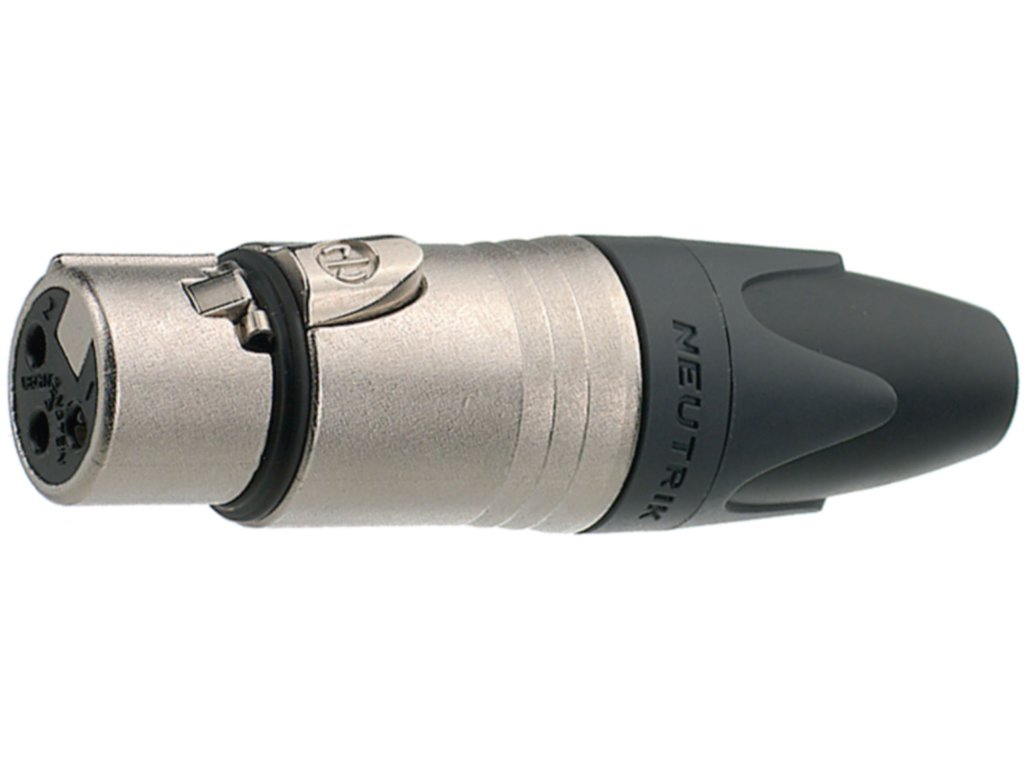

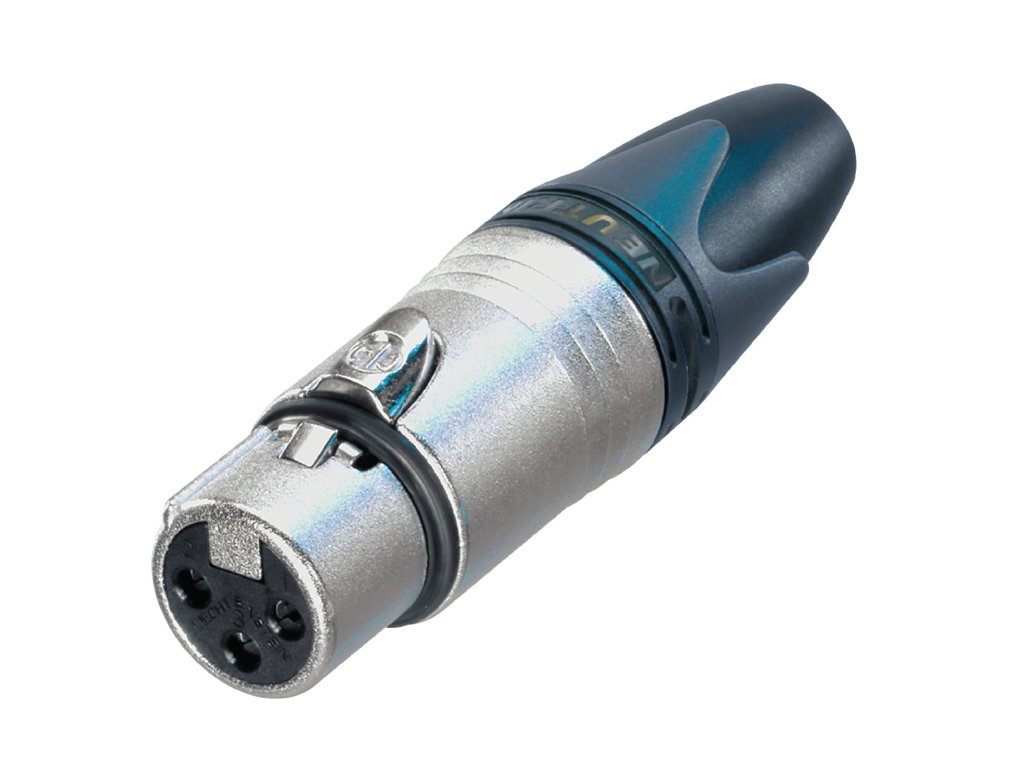

Konektor XLR Zásuvka Kov

Detailní popis produktu

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Product • Connector Type: XLR • Gender: female Electrical • Capacitance between contacts: ≤ 4 pF • Contact resistance: ≤ 3 mΩ • Dielectric strength: 1,5 kVdc • Insulation resistance: > 2 GΩ (initial) • Insulation resistance: > 1 GΩ (after damp heat test) • Rated current per contact: 16 A • Rated voltage: 50 V Mechanical • Cable O.D.: 3.5 - 8.0 mm • Insertion force: ≤ 20 N • Withdrawal force: ≤ 20 N • Lifetime: > 1000 mating cycles • Wire size: max. 2.5 mm² • Wire size: max. 14 AWG • Wiring: Solder contacts • Locking device: Latch lock Material • Boot: Polyuretan • Bushing: Polyamide (PA 6 15% GR) • Contact plating: 2 um Ag • Contacts: Bronze (CuSn8) • Insert: Polyamide (PA 6.6 30 % GR) • Locking element: Zinc diecast (ZnAl4Cu1) • Shell: Zinc diecast (ZnAl4Cu1) • Shell: plating Nickel • Strain relief: Polyacetal (POM) Environmental • Flammability UL 94 HB • Standard compliance IEC 61076-2-103 • Protection class IP 40 • Solderability: Complies with IEC 68-2-20 • Temperature range: -30 °C to +80 °C
